| Part Number |
|
|
|
|
|
|
|
|
4315_SMAfBMAm_A |
|
|
|
|
|
|
| Description |
|
|
|
|
|
|
|
|
SMA(Female)/BMA(Male),Adaptor |
|
|
|
|
|
|
|
|
|
|
|
|
|
|

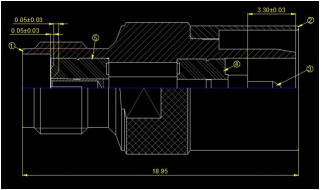

| Outline Drawing |
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Electrical Data |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Impedance |
50 Ω |
| Operating frequency |
DC ~ 6.0GHz |
| Insulation resistance |
≥5000 MΩ |
| Dielectric withstand voltage AC r.m.s |
≥1000 V |
| Working voltage |
≤330 V |
| Center contact resistance |
≤3.0 mΩ |
| Outer contact resistance |
≤2.0 mΩ |
|
|
|
|
DC~3.0 GHz |
3.0~6.0 GHz |
| VSWR |
≤1.08 |
≤1.12 |
| Insertion loss |
≤0.1 dB |
≤0.15dB |
|
|
|
|
|
|
|
|
| Mechanical Data |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Mating cycles |
≥ 500 |
| Engagement force |
< 14 N |
| Disengagement force |
< 9 N |
| Center contact retention force |
> 7 N |
|
|
|
|
|
|
|
|
| Environmental Data |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Operating temperature range |
-55℃~125℃ |
| Vibration |
MIL-STD 202F , Meth.204 , Cond.B |
| Shock |
MIL-STD 202F , Meth.213 , Cond.A |
| Thermal shock |
MIL-STD 202F , Meth.107 , Cond.B |
| Moisture resistance |
MIL-STD 202F , Meth.106 |
| Salt Spray |
MIL-STD 202F , Meth.101 , Cond.A |
| 2002/95/EC (ROHS) |
Compliant |
|
|
|
|
|
|
|
|
| Material Data |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Center Contact |
Beryllium Copper / Au |
| Outer Contact&Body |
Brass/ Au |
| Insulator |
PTFE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
